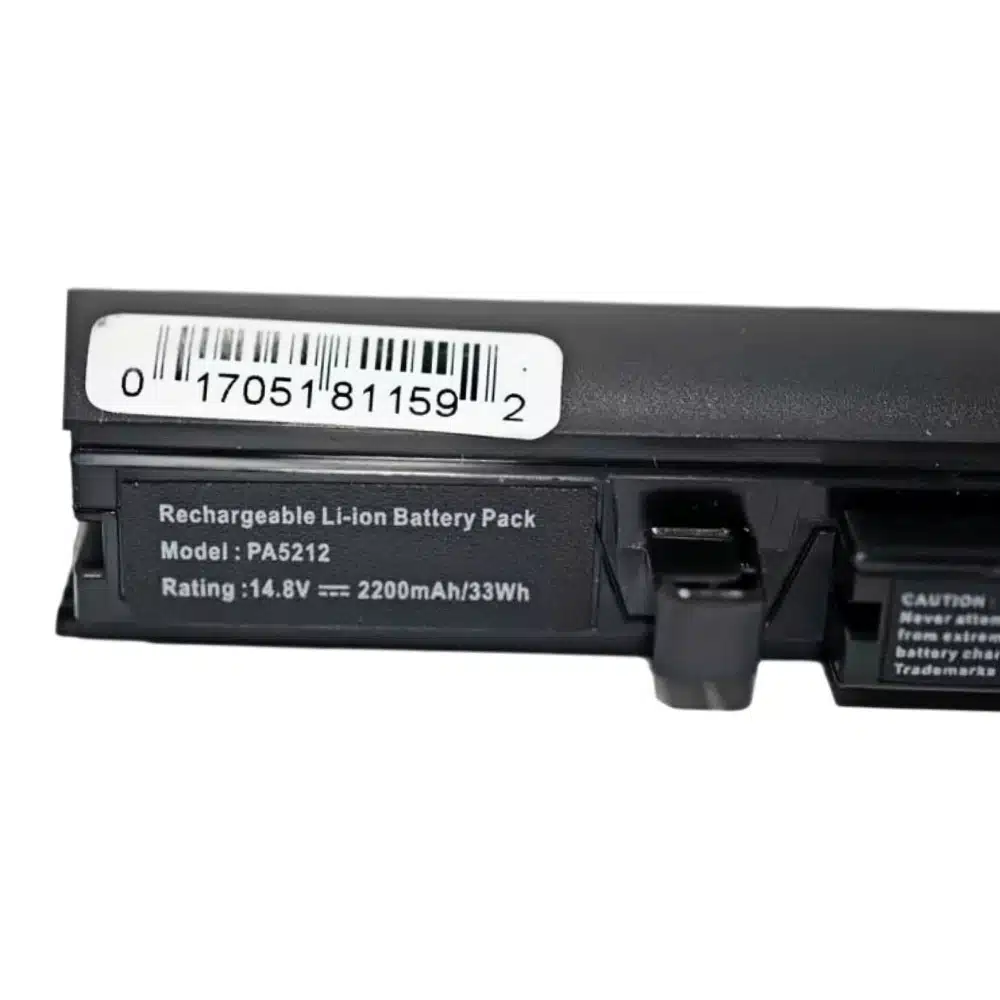

PA5212U-1BRS 14.8V 32Wh Replacement Battery for Toshiba Tecra A40-C A50-C C50 Z50-C Satellite Pro R50 Series — Factory-Direct Wholesale Supply

Q1: After installing the PA5212U-1BRS, the Tecra A40-C or A50-C shows “plugged in, not charging” — is this an EC handshake failure or a hardware fault?

A1: On the Tecra A40-C and A50-C platform, the EC validates the replacement pack’s chemistry byte and design capacity register from the BMS EEPROM during the first charge cycle. If the register value doesn’t match the EC’s expected 32Wh design capacity for this platform, the EC holds the charge circuit open and the OS reports the “plugged in, not charging” state. This is a firmware-level rejection, not a hardware fault. The standard field remedy is a hard power drain: disconnect AC, remove the battery, hold the power button for 20 seconds to discharge residual capacitor charge, reinstall the battery, reconnect AC, and cold-boot. This forces a clean EC handshake sequence. If the condition persists past two charge cycles, the replacement pack’s EEPROM values are mismatched at the production level and the batch should be returned.

Q2: Will the Windows battery health report and Toshiba system utility show correct design capacity for this 2200mAh unit, given that a higher-capacity variant also exists under the same P/N?

A2: The PA5212U-1BRS part number covers two factory capacity variants — the 2200mAh / 32Wh version and a 2800–3000mAh / 45Wh version — and both use the same connector and BMS communication protocol. Our BMS is flashed specifically for the 2200mAh / 32Wh specification: the DesignCapacity register (SBS command 0x18) is initialized at 32,000 mWh. After installation, the Windows powercfg /batteryreport output will reflect this value in the Design Capacity field. If your original battery label shows a higher mAh figure, confirm which capacity variant you need before ordering — capacity variants under the same P/N are not electrically interchangeable from a BMS reporting perspective, even though connector fit is identical.

Q3: Can IT asset management teams order PA5212U-1BRS in batches that cover multiple Tecra sub-models — for example, A40-C and Z50-C units on the same fleet refresh order?

A3: Yes. IT teams managing mixed Tecra fleets are among the most common wholesale account types for this reference. Because the PA5212U-1BRS covers the A40-C, A50-C, C50, and Z50-C lines under a single part number, a fleet refresh order can specify total unit count rather than per-sub-model splits — the battery is physically and electrically identical across all confirmed compatible chassis. For organizations managing Satellite Pro R50-series devices alongside Tecra units, those can be combined on the same purchase order as a mixed-SKU line item. The 20-unit pricing threshold applies to the combined order total. Request a tiered price schedule through the wholesale inquiry form.

Q4: What should a technician check before installing this battery in a Tecra C50-B where the original pack was swollen?

A4: Swelling in the original Tecra C50-B battery is typically caused by electrolyte decomposition from chronic overcharge or sustained high-temperature storage — a BMS failure mode in the original pack, not a chassis design problem. Before fitting the replacement, inspect the battery bay floor and side walls for deformation: a severely swollen original pack can bow the plastic bay liner slightly outward, which can prevent the new pack from seating flush. If the liner shows visible bowing, gentle pressure to reset the bay profile is usually sufficient; the replacement pack’s dimensional tolerance is held to ±0.3mm and does not require a deformed bay to fit. Also check that the bay connector latch on the motherboard side is undamaged, as swelling-related pressure sometimes stresses the latch retention tab.

Q5: What is the recommended storage SOC and shelf-life window for PA5212U-1BRS units held in distributor or repair shop inventory?

A5: Units leave the production line at 40–50% state of charge — the electrochemically stable window for Li-ion cell storage that minimizes both calendar aging and self-discharge loss during transit and warehousing. At this SOC range, stored in an environment between 10–25°C with relative humidity below 65%, cell self-discharge runs approximately 2–3% per month. Inventory held under these conditions for up to 12 months will arrive at the bench with sufficient residual charge for immediate installation and a first-boot health check. For stock approaching the 6-month mark, a brief top-up to restore the 50% SOC band before customer dispatch is advisable to compensate for accumulated self-discharge.

Q6: This P/N appears under both the Toshiba and Dynabook brand names in some distributor catalogs — are the physical battery and connector identical across both brand labels?

A6: Yes. Dynabook is Toshiba’s rebrand following Sharp Corporation’s acquisition of the PC division in 2018. The PA5212U-1BRS part number appears in Dynabook-branded documentation and parts catalogs for the same Tecra A40-C, A50-C, C50, and Z50-C chassis, with no change to the connector, cell configuration, or BMS specification. The physical pack, EEPROM firmware, and electrical parameters are identical regardless of whether the original device carries a Toshiba or Dynabook nameplate. Both brand references resolve to the same replacement unit in our catalog.
