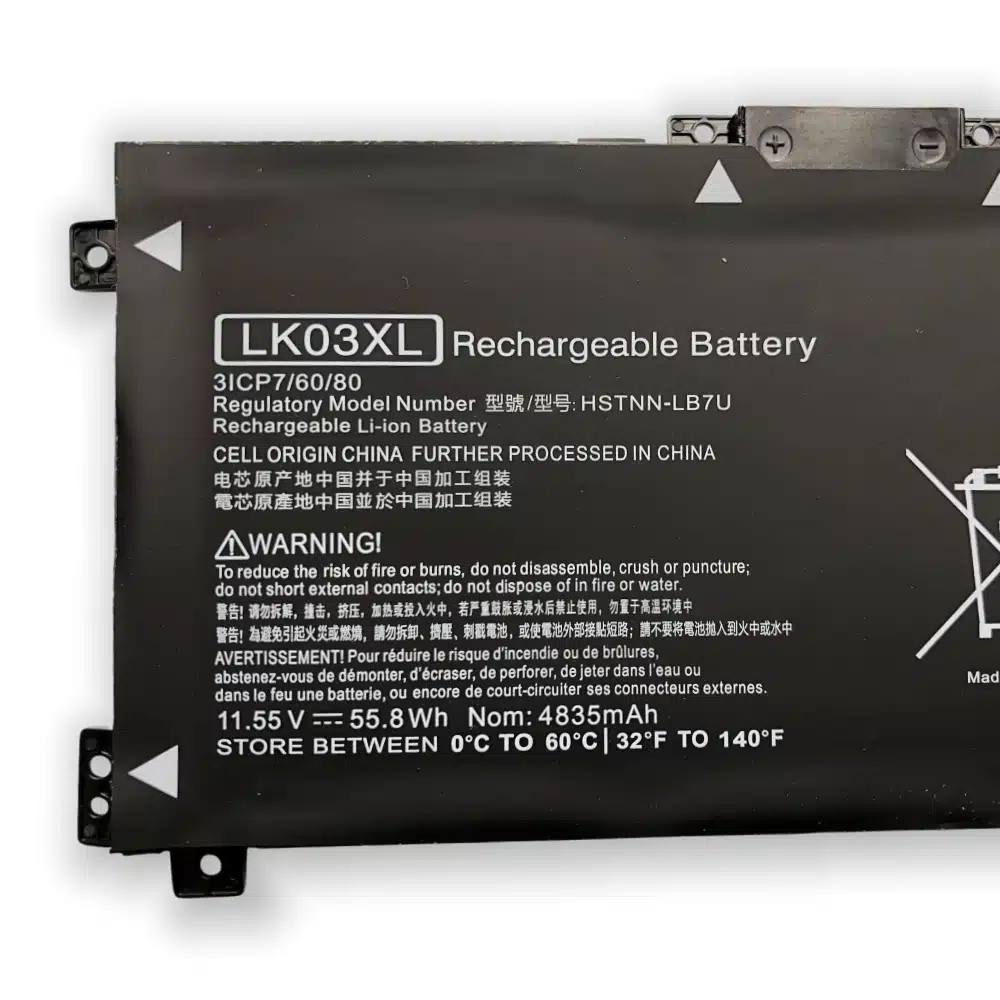

HP LK03XL Replacement Laptop Battery | 11.55V 55.8Wh 3-Cell for Envy X360 15-bp 15-bq 15-cn 15-cp 17-ae 17-bw 17-ce Series

Q1: What is the difference between LK03XL, LK03048XL, LK03052XL, and LK03055XL?
These are capacity sub-variants of the same physical platform. LK03048XL is the original 48Wh version shipped with early bp/bq series machines in 2017. LK03052XL is the 52.5Wh mid-generation variant. LK03055XL and the generic LK03XL designation both refer to the current 55.8Wh production spec. All three use the same connector, same footprint, and the same 6.9mm pack height — they are physically interchangeable. For repair shops and distributors: stocking the 55.8Wh LK03XL covers all three sub-variants simultaneously and delivers a capacity upgrade for machines originally shipped with the lower-capacity versions. Do not confuse LK03XL with BN03XL, LE03XL, or SA04XL — those are separate platforms entirely.

Q2: Why does the LK03XL require strict pack height tolerance when other HP batteries don’t?
Because the Envy X360 is a 360-degree convertible chassis, not a standard clamshell. When the screen rotates to tablet position, the bottom panel and display assembly compress toward each other. The clearance between the battery top surface and the digitizer layer in flat/tablet mode is under 0.3mm on most X360 variants. A pack assembled at 7.0mm or thicker will gradually stress the touchscreen adhesive and digitizer flex cable, producing dead touch zones — typically first appearing in the lower-left corner — over 4–8 weeks of regular tablet use. The 6.9mm specification is not a design preference; it is a structural requirement dictated by the X360 chassis geometry.

Q3: Can the LK03XL be used to replace a battery showing “0% available (plugged in, not charging)” on an HP Envy X360?
This symptom can have two causes. The first is a depleted or defective battery where replacement with a new LK03XL resolves the issue immediately. The second cause is an HP EC (Embedded Controller) firmware state where the controller has cached an error flag from the old battery. In this case, after installing a new LK03XL: disconnect the AC adapter, hold the power button for 30 seconds to discharge residual capacitor voltage, then reconnect. On approximately 90% of cases this resets the EC state and the new battery charges normally. If the symptom persists after this procedure, the issue is the charging circuit board — not the battery.

Q4: What sample and validation process do you recommend before a first bulk LK03XL order?
For first-time B2B buyers, we recommend a sample run of 5–10 units covering the two most common chassis targets: the 15m-cn series (AMD platform) and the 15-bp series (Intel platform). The validation steps we suggest: install in each chassis and verify HP Power Manager shows accurate capacity percentage; run a full charge/discharge cycle and confirm Wh output within 5% of rated 55.8Wh using a USB power monitor or lab charger; fold to tablet mode and leave for 48 hours, then verify touchscreen response in all four corners. These three checks catch the most common failure modes — BMS communication errors, capacity inflation, and dimensional non-compliance — before you commit to bulk volume.

Q5: Do you maintain stock specifically for the LK03XL, or is it a build-to-order SKU?
The LK03XL is one of our standing inventory SKUs. We maintain finished goods stock because the Envy X360 fleet — particularly the 15m-cn and 15m-cp AMD variants sold heavily to US college students and professionals between 2018 and 2020 — is now generating consistent replacement demand. Standard orders ship within 3–5 business days. For volume orders requiring custom labeling or non-standard carton configurations, production lead time is 7–10 business days from order confirmation. We can provide a weekly available-to-promise (ATP) stock report to qualified wholesale accounts on request.

Q6: How do you handle warranty claims on LK03XL bulk orders, and what documentation comes with each shipment?
Each LK03XL bulk shipment includes a Certificate of Conformance specifying cell lot number, production date, QC test parameters (voltage, capacity, internal resistance), and pass/fail criteria. Warranty coverage is 12 months from shipment date against manufacturing defects including premature capacity loss below 70% of rated Wh. For DOA claims, we require a photo of the defective unit label and a brief description of the failure — not a return shipment — below a defined batch threshold. Replacement units are dispatched within 5 business days of claim confirmation. For enterprise accounts running formal supplier qualification programs, we can provide production batch audit documentation on request.
