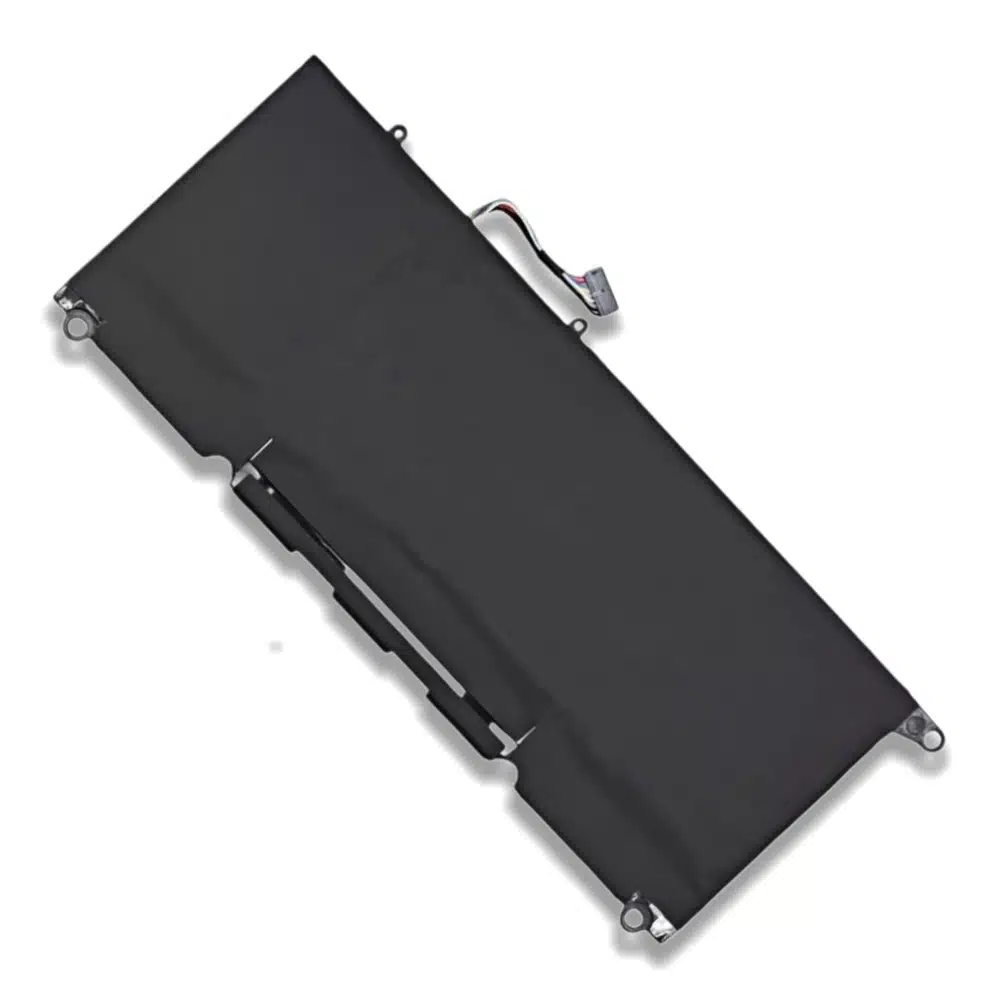

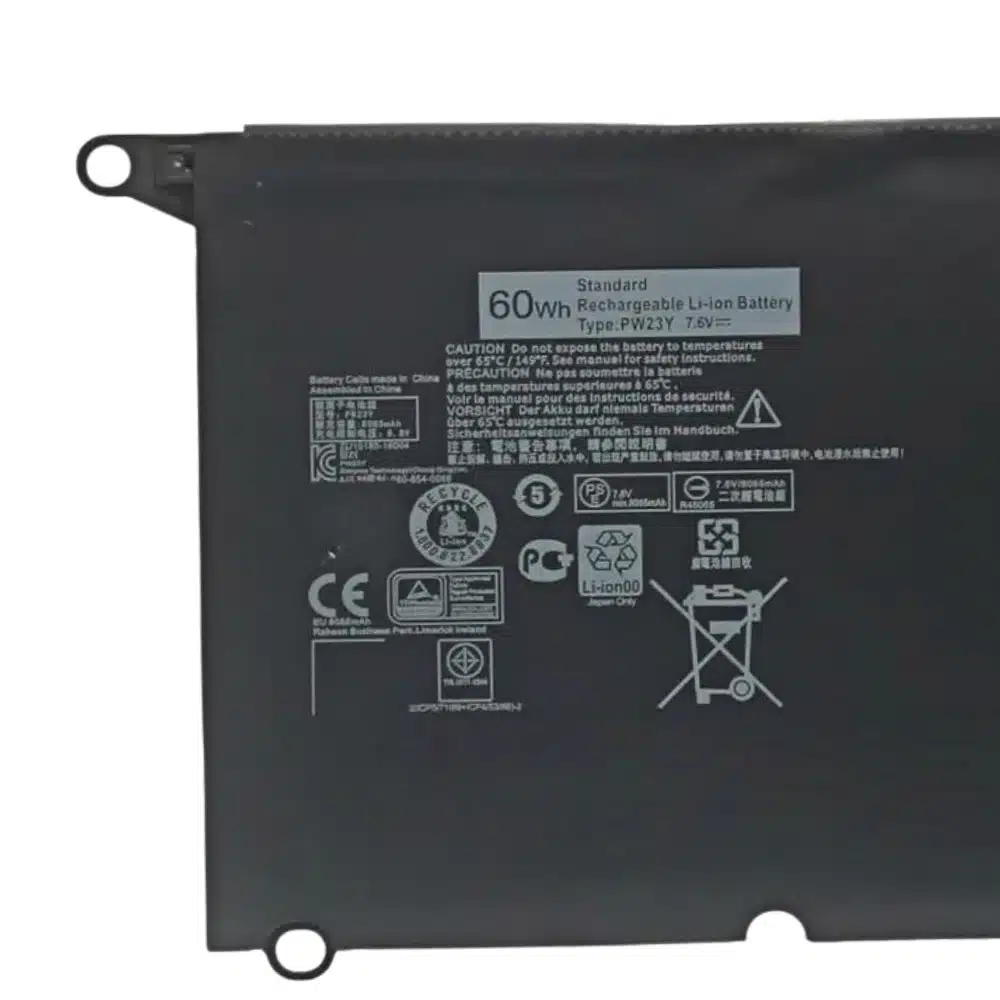

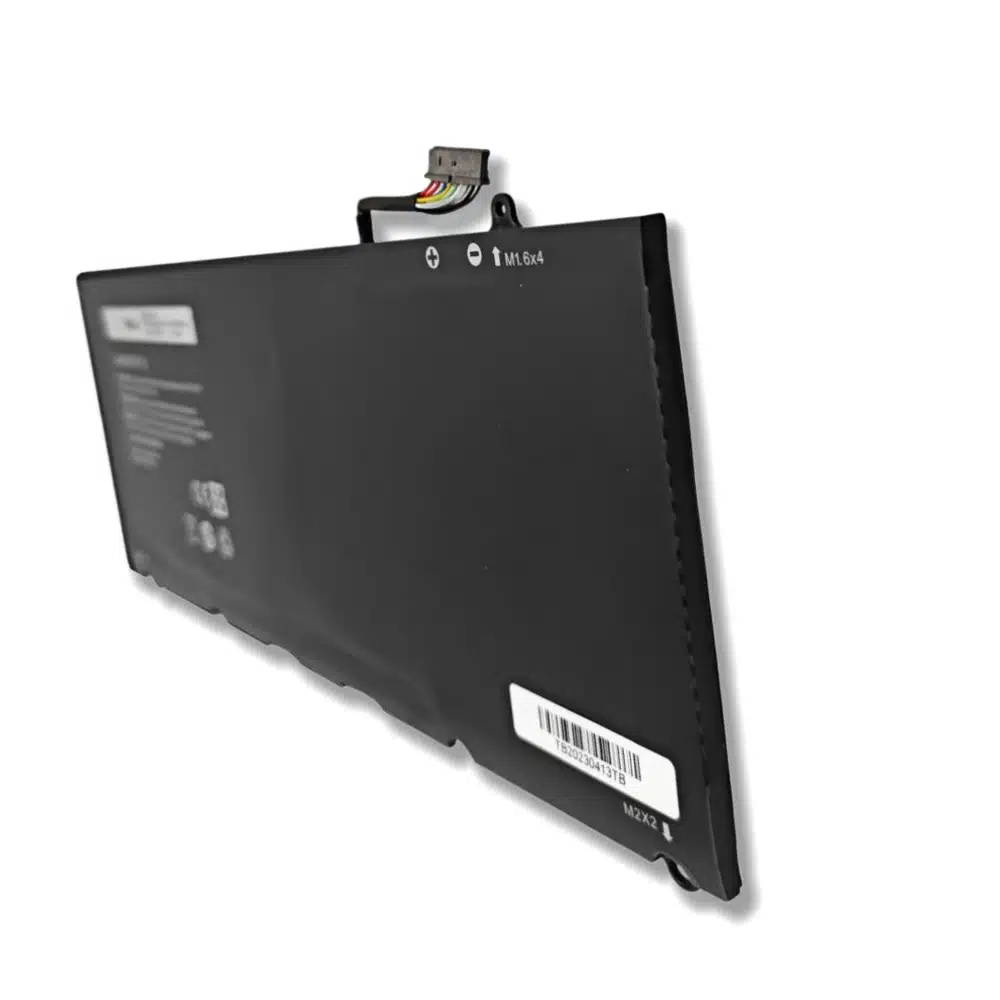

PW23Y 60Wh 7.6V 4-Cell Li-Polymer Replacement Battery for Dell XPS 13 9360 / XPS 13 2017 Series — TP1GT RNP72 0PW23Y 0TP1GT
-
Part Numbers: PW23Y / 0PW23Y / TP1GT / 0TP1GT / RNP72 / 0RNP72 — 60Wh / 7.6V / 4-Cell Li-Polymer / 7,600mAh
-
Precise Fit: Designed exclusively for Dell XPS 13 9360 (2017 platform / P54G002) — not compatible with XPS 13 9350 or 9343; always verify chassis P/N before ordering
-
Factory Direct Supply: Thin-profile Li-Po construction matched to OEM form factor; small batch orders accepted with consistent lead times for IT distributors and laptop repair specialists
-
PCB Protection: Over-charge, over-discharge, over-temperature, and short-circuit protection; 4-cell matched assembly for uniform capacity across bulk shipments
-
Garantia da Qualidade: 12-month warranty; ≥95% rated capacity verified pre-shipment; full electrical test report available with sample orders
Descrição do produto
The PW23Y is the sole battery configuration for the Dell XPS 13 9360 — unlike the dual-capacity Dell Inspiron or Latitude platform batteries, there is no alternate Wh variant using the same P/N. Every XPS 13 9360 that left the factory used this 60Wh, 7.6V, 4-cell Li-Polymer pack. That single-configuration fact actually simplifies B2B procurement compared to multi-variant SKUs: if the chassis is a 9360 (P54G002 board), this is the correct battery. The only sourcing risk is cell quality — the XPS 13 9360’s thermal design is tight, and a battery with high internal resistance or poor cell matching runs warmer, trips thermal throttling on the CPU, and degrades faster. Our production uses capacity-matched Grade-A cells with internal resistance tested at the cell level before assembly. Batch-level QC rejection runs below 0.3%.
One installation note relevant to repair shops: the XPS 13 9360 uses a pull-tab adhesive strip to secure the battery to the chassis, not screws. Replacement batteries should include fresh adhesive. Confirm with your supplier that the unit ships ready for adhesive installation — loose batteries inside the chassis cause connector stress over time.
Verified Compatible Part Numbers (P/N):
PW23Y · 0PW23Y · TP1GT · 0TP1GT · RNP72 · 0RNP72 · P54G002 (chassis board P/N)
Modelos compatíveis verificados:
| Chassis / Series | Specific Configurations |
|---|---|
| Dell XPS 13 9360 | All SKUs shipped 2016–2018 |
| Dell XPS 13 2017 | D1505, D1505G, D1605G, D1605T, D1609, D1609G |
| Dell XPS 13 2017 | D1705, D1705G, D1805T, D1805TG |
⚠️ Not compatible with XPS 13 9350 (uses JD25G) or XPS 13 9343 (uses JHXPY). P/N families look similar in search results — confirm chassis model number before ordering at volume.
Parâmetros técnicos
| Parâmetro | Especificação |
|---|---|
| Part Number (P/N) | PW23Y / 0PW23Y / TP1GT / 0TP1GT / RNP72 / 0RNP72 |
| Tipo de Bateria | Li-Polymer (Lithium Polymer), 4-Cell Pouch |
| Tensão nominal | 7.6V (Nominal) / 8.7V (Max Charge) |
| Rated Capacity (Wh) | 60Wh |
| Capacidade nominal (mAh) | 7,600mAh (approx.) |
| Configuração da célula | 2S2P (2 series × 2 parallel), pouch cell format |
| Grau celular | Grade-A Li-Polymer, IR-tested at cell level before assembly |
| Cor | Preto |
| Over-charge Cutoff | > 8.7V |
| Over-discharge Protection | < 6.0V |
| Over-temperature Cutoff | > 70°C |
| Cycle Life (rated) | 500 full charge-discharge cycles |
| Temperatura de operação | 0°C – 45°C (Charging) / -20°C – 60°C (Discharging) |
| Temperatura de armazenamento | -20°C – 35°C (recommended at 40–60% charge for long-term storage) |
| Mounting Method | Adhesive pull-tab strip (OEM-style, chassis adhesive-secured — not screw-mounted) |

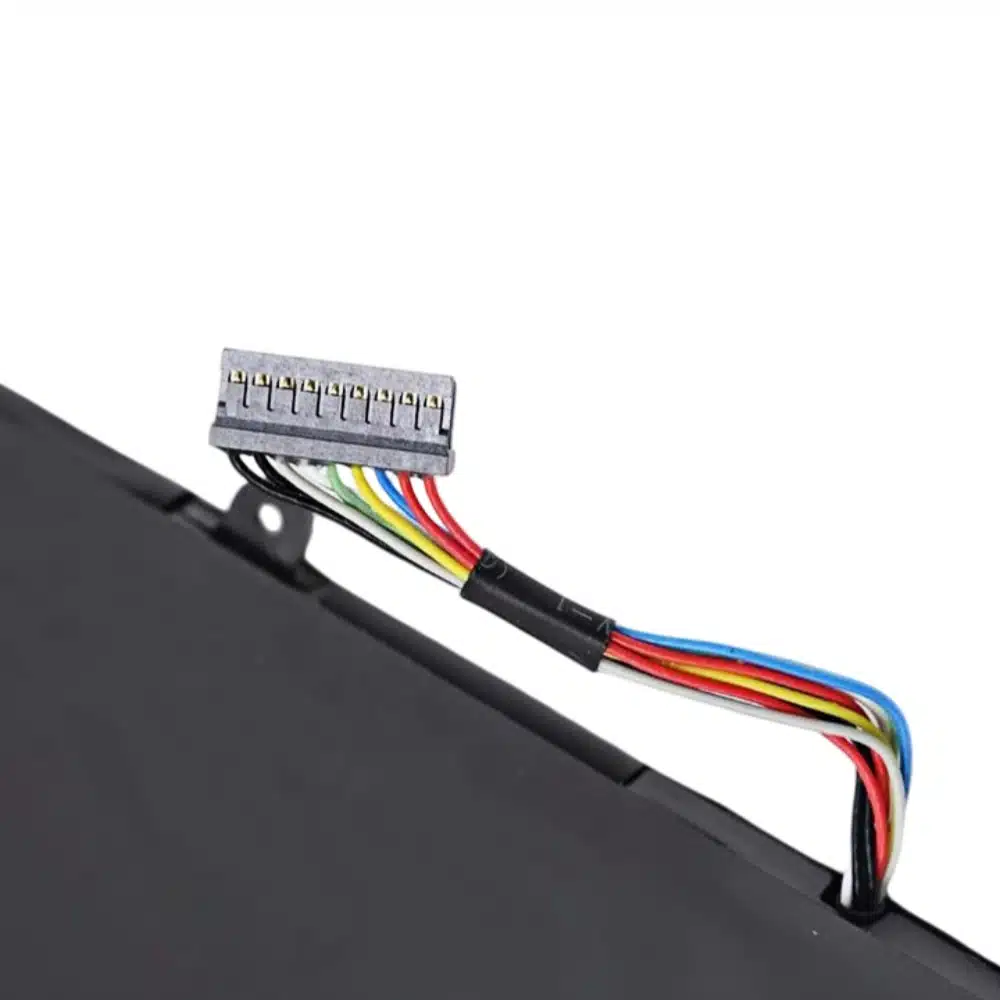

| Connector | OEM-matched Dell XPS 13 9360 Li-Po connector |
| Certificações | CE / FCC / RoHS (batch documentation available on request) |
| Garantia | 12 meses |
Precisa de um plano de fornecimento estável? Envie sua lista de modelos, quantidades e destino. Confirmaremos o prazo de entrega, o método de envio e os documentos de conformidade antes de você fazer o pedido.
Características e vantagens
✅ Single-Configuration SKU — Zero Variant Confusion
Every Dell XPS 13 9360 shipped with exactly this battery. No capacity variants, no connector variants. For repair depots and IT resellers, that means one SKU covers the entire 9360 install base — simpler inventory, lower carrying cost, zero fitment guesswork at the technician level.
✅ Thin-Profile Li-Polymer Construction, OEM Dimensional Spec
Li-Polymer pouch cell construction allows the flat, sub-5mm profile required by the XPS 13 9360 chassis — a form factor that standard cylindrical Li-ion cells cannot achieve. Our replacement matches OEM thickness within ±0.2mm, ensuring the bottom panel seats correctly without stress on the hinge assembly.
✅ Cell-Level Internal Resistance Screening
Each cell is tested for internal resistance before assembly. High-IR cells are rejected at intake — not after pack assembly. This upstream screening step is what differentiates Grade-A supply from generic aftermarket stock, and it directly affects how the battery behaves under CPU load spikes where peak draw can hit 35W+ on the XPS 13 platform.
✅ Factory Direct — Repair Depot and Distributor Pricing
No distributor margin stacked on top of manufacturing cost. Pricing is structured for repair chains, IT asset management operations, and B2B platform resellers running continuous replenishment. Rolling small-batch orders are supported without steep minimum quantity requirements.
✅ Private Label and Custom Packaging Available
Neutral OEM-style packaging or branded label printing both available. Refurbished laptop resellers and enterprise IT service providers can request custom presentation to match their service brand. Sample units with full discharge capacity and internal resistance test data ship before production commitment.
Embalagem e entrega
Prazo de entrega e envio
Produtos em estoque: Envio em até 3 dias
Para modelos de substituição padrão com estoque disponível.Encomendas de produção em massa: Envio em até 7 dias.
Para modelos regulares, de acordo com as especificações e requisitos de embalagem confirmados.Encomendas personalizadas: Envio em até 15 dias.
Para configuração personalizada de células, tamanho, fios/conectores, PCB/BMS, etiquetagem ou embalagem.
Observação: O tempo final de despacho depende de quantidade total, complexidade do modelo, requisitos de embalagem e documentos de conformidade de envio. Confirmaremos a data estimada de envio (ETD) após a confirmação do pedido.
Frete aéreo (urgente, volume menor)
Frete marítimo (custo-benefício para grandes volumes)
Ferrovia / Rodovia (dependendo do destino)
Canais expressos
Documentos disponíveis: UN38.3 / FISPQ / Relatório de Teste de Transporte (se aplicável)
A embalagem e a rotulagem das caixas de acordo com as normas podem ser providenciadas com base no método de envio escolhido.
EXW / FOB / CIF / DDP disponíveis
Perguntas frequentes
Q1: Will the PW23Y battery fit a Dell XPS 13 9350 or 9343?
A: No. The PW23Y is specific to the XPS 13 9360 (P54G002 board). The XPS 13 9350 uses the JD25G battery, and the 9343 uses JHXPY. Physical dimensions, connector pinout, and voltage differ between these platforms. Do not substitute across generations. Check the chassis service tag or open the bottom panel to confirm the board P/N before ordering at volume.
Q2: What is the actual runtime I should expect from a PW23Y replacement battery?
A: Under mixed-use conditions — web browsing, office applications, screen at mid-brightness — a fully charged 60Wh PW23Y typically delivers 6–9 hours on the XPS 13 9360. Heavy workloads (video rendering, sustained CPU load) bring that down to 3–4 hours. Runtime significantly below these ranges after a proper calibration cycle indicates cell degradation or a substandard replacement. Verify actual capacity using HWiNFO64 by comparing “Design Capacity” versus “Full Charge Capacity.”
Q3: The XPS 13 9360 shows “Plugged In, Not Charging” after fitting a new PW23Y — what is causing this?
A: This is a known Dell EC (embedded controller) behavior when a non-OEM battery is first detected. The EC runs a brief authentication handshake with the battery BMS. Steps to resolve: (1) Shut down completely, unplug AC. (2) Hold the power button 15–20 seconds. (3) Reconnect AC without the battery connected if possible, boot to BIOS, then power off and reattach the battery. (4) Update the Dell EC firmware via Dell Update if an update is pending. Most cases resolve within 1–2 boot cycles.
Q4: Why does the PW23Y use 7.6V instead of the 11.1V common on other Dell laptops?
A: The XPS 13 9360 uses a 2S (2-series) Li-Polymer cell configuration rather than the 3S configuration found in standard 6-cell or 3-cell cylindrical packs. Two cells in series gives a nominal 7.6V. Dell’s XPS power circuitry is designed around this lower-voltage, higher-current architecture, which allows thinner cell construction. Attempting to use an 11.1V / 3S battery — even if the connector physically fits — would damage the charging circuit.
Q5: Can I order a sample PW23Y battery with a test report before committing to a bulk order?
A: Yes. Sample units ship within 3–5 business days, accompanied by a full electrical test report covering actual discharge capacity (vs. rated 60Wh), internal resistance per cell group, and thermal stability data. Bulk production lead time is 7–15 business days depending on quantity. Accepted payment terms: T/T, L/C, and platform escrow. Rolling replenishment orders are supported for distributors and repair chains that need continuous stock.
Q6: What distinguishes your PW23Y supply from generic aftermarket batteries on the market?
A: Three things that directly affect performance and return rates: (1) Cell-level internal resistance screening before assembly — high-IR cells are rejected before they become a pack problem. (2) Capacity-matched cell grouping within ±20mAh, which matters for the 2S2P architecture where cell imbalance accelerates degradation. (3) Pre-shipment discharge capacity verification — every unit must hit ≥95% of rated 60Wh to pass. Generic aftermarket stock often skips steps 1 and 3, which is why those batteries typically fail within 150–200 cycles rather than the rated 500.
