15kWh Wall Mounted LiFePO4 Battery | 51.2V 300Ah High-Capacity Home ESS
-
Nominal Energy: 15.36kWh (Massive Capacity)
-
System Voltage: 51.2V (16S LiFePO4)
-
Capacity: 300Ah
-
Cell Type: Automotive-Grade A Prismatic Cells
-
Cycle Life: ≥6000 Cycles @ 80% DOD
-
Communication: Dual CAN/RS485 (Victron/Deye/Growatt Compatible)
-
Scalability: Parallel up to 15 units (Max 230kWh)
-
Warranty: 5 Years (10+ Years Design Life)
Product Catalogue
Contact Us
Product Description
The Ultimate Power Solution for Modern Living
Meet the flagship of residential energy storage: the Balder Power 15kWh Wall Mounted LiFePO4 Battery. As a specialized Lithium Battery Manufacturer, we engineered this 51.2V 300Ah system to meet the growing energy demands of modern smart homes and electric vehicle (EV) charging needs.
Why Choose 15kWh (300Ah)?
-
Space Efficiency: Instead of hanging multiple small batteries on your garage wall, a single 15kWh unit provides a cleaner, more minimalist look.
-
Cost-Effective: Lower cost per kWh compared to purchasing multiple smaller casings and BMS units.
-
High Power Output: The 300Ah capacity supports higher continuous discharge currents, allowing you to run heavy appliances like central air conditioners and pool pumps effortlessly.
Robust & Reliable:
Housed in a heavy-duty metal enclosure, this battery is built to withstand the rigors of daily cycling. It includes a dedicated heavy-duty wall bracket to ensure secure mounting for its substantial weight.
Technical Parameters
| Technical Specifications | Model: BPEL512300W |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Total Energy | 15,360Wh (15.36kWh) |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >6000 Cycles @ 80% DOD |
| Monthly Self-Discharge | <3% |
| Efficiency | Charge: 100% @0.5C Discharge: 96-99% @1C |
| Charge Cut-off Voltage | 58.4V ± 0.2V |
| Charge Mode | CC/CV (0.2C to 58.4V, hold till current ≤0.05C) |
| Recommended Charge Current | 20A – 50A |
| Max. Charge Current | 200A |
| Max. Continuous Discharge | 200A |
| Max. Pulse Current | 250A |
| Discharge Cut-off Voltage | 40V |
| Operating Temperature | Charge: 0°C to 45°C (32°F to 113°F) Discharge: -20°C to 60°C (-4°F to 140°F) (@ 60±25% Relative Humidity) |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| IP Rating | IP67 (Water & Dust Resistant) |
| Enclosure Material | Heavy-duty Metal Case |
| Dimensions | 880 x 520 x 163 mm |
| Net Weight | 120 kg |
| Communication Protocols | CAN, RS485 |
| Certifications | UN38.3, MSDS, CE |
| Monitoring Interface | LCD Screen: Yes Bluetooth: Optional |
| Parallel Scalability | Yes, Max 15 Units |
| Warranty | 5 Years |
Features & Advantages
Massive 15kWh Single-Unit Capacity
Power your entire home with a single unit. The Balder Power 51.2V 300Ah Wall Mounted Battery delivers an industry-leading 15.36kWh of energy. Designed for large luxury villas and high-consumption off-grid homes, one 15kWh unit replaces three standard 5kWh modules, significantly reducing installation time, cable clutter, and wall space usage.

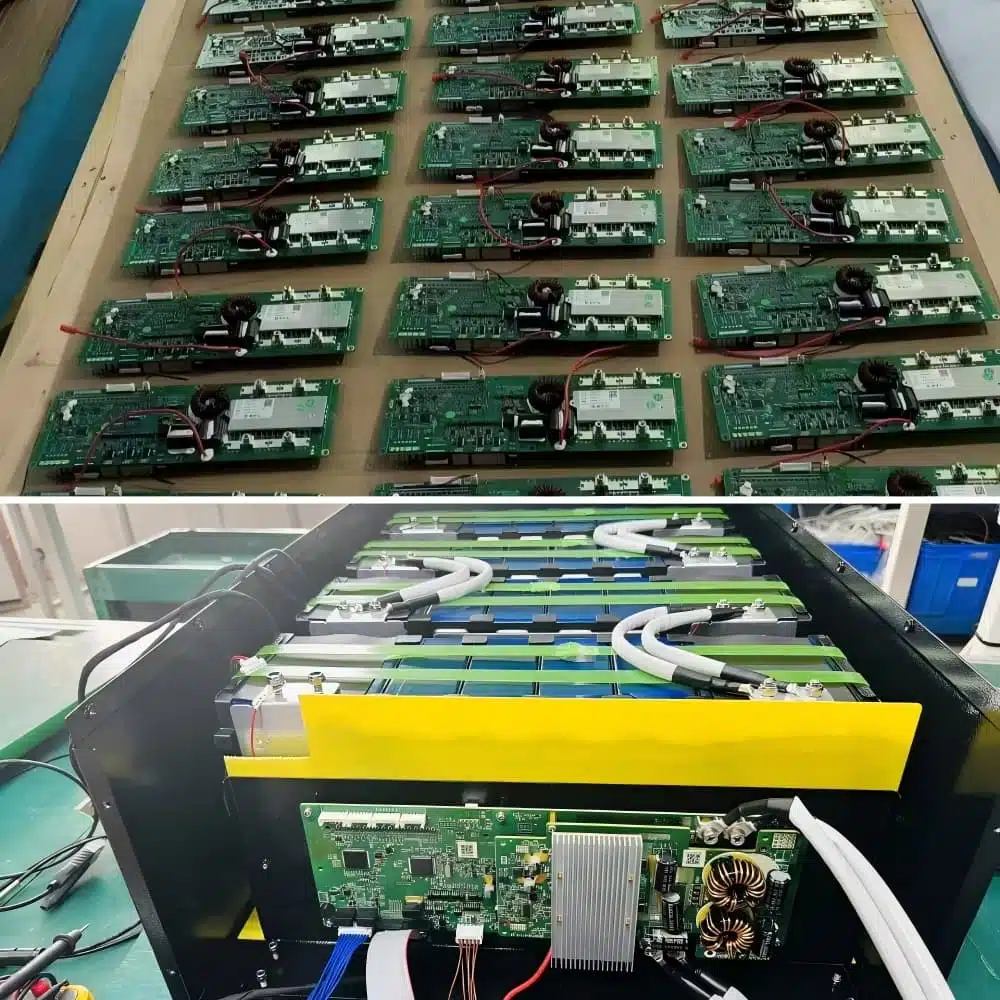

Smart BMS with Universal Compatibility
Equipped with a top-tier Intelligent Battery Management System (BMS), this battery ensures seamless communication with the world’s leading hybrid inverters. It supports CAN and RS485 protocols and is pre-programmed for Plug-and-Play integration with:
- Victron Energy, Deye, Growatt, SMA, GoodWe, Solis, LuxPower, and Voltronic.
Automotive-Grade Safety & Longevity

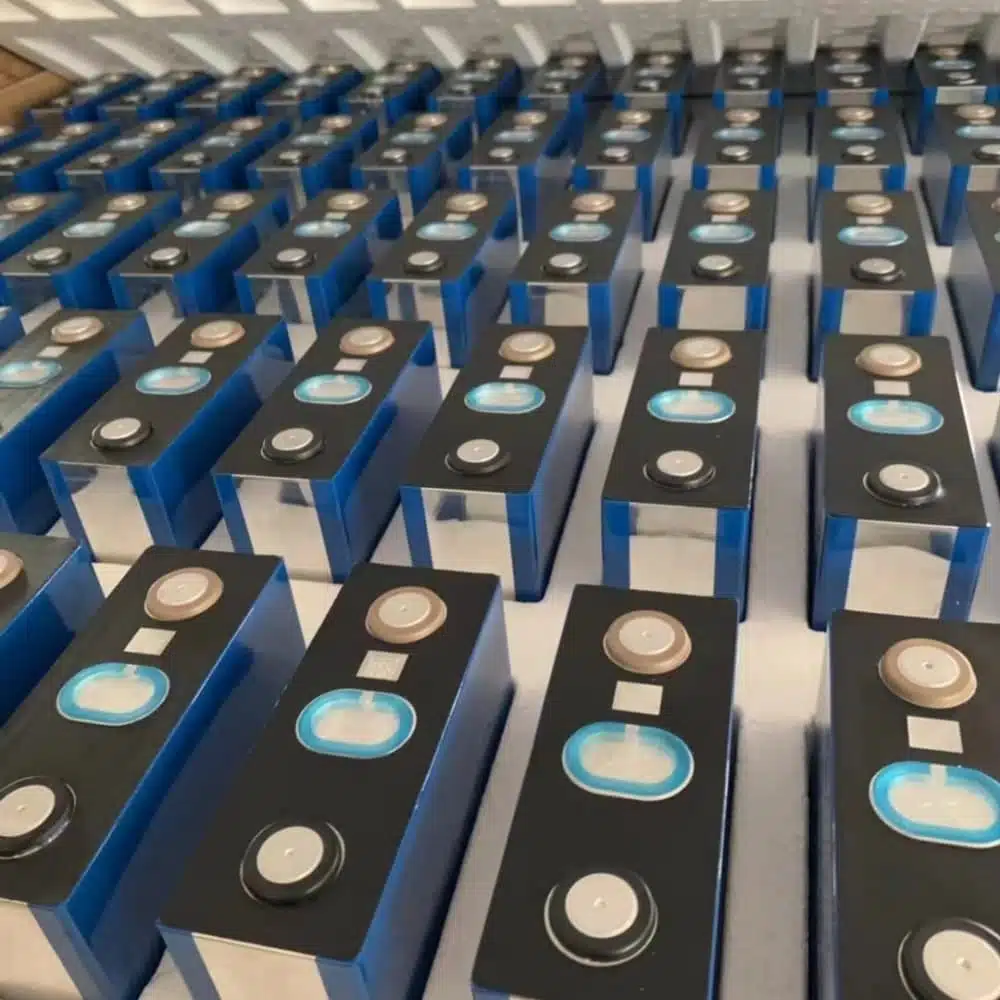

Security is paramount for large-capacity storage. We utilize strictly sorted Grade A LiFePO4 Prismatic Cells with high thermal stability. The internal structure is reinforced with heavy-duty brackets to support the 300Ah cell pack, ensuring 6000+ deep cycles and a service life exceeding 15 years.
Intelligent Monitoring & Management
Stay in control of your energy. The unit features an integrated LCD Display for instant voltage and SOC checks. Optionally, it supports Bluetooth/WiFi connectivity, allowing users to monitor battery health and history via a mobile App or PC software remotely.
Packing & Delivery

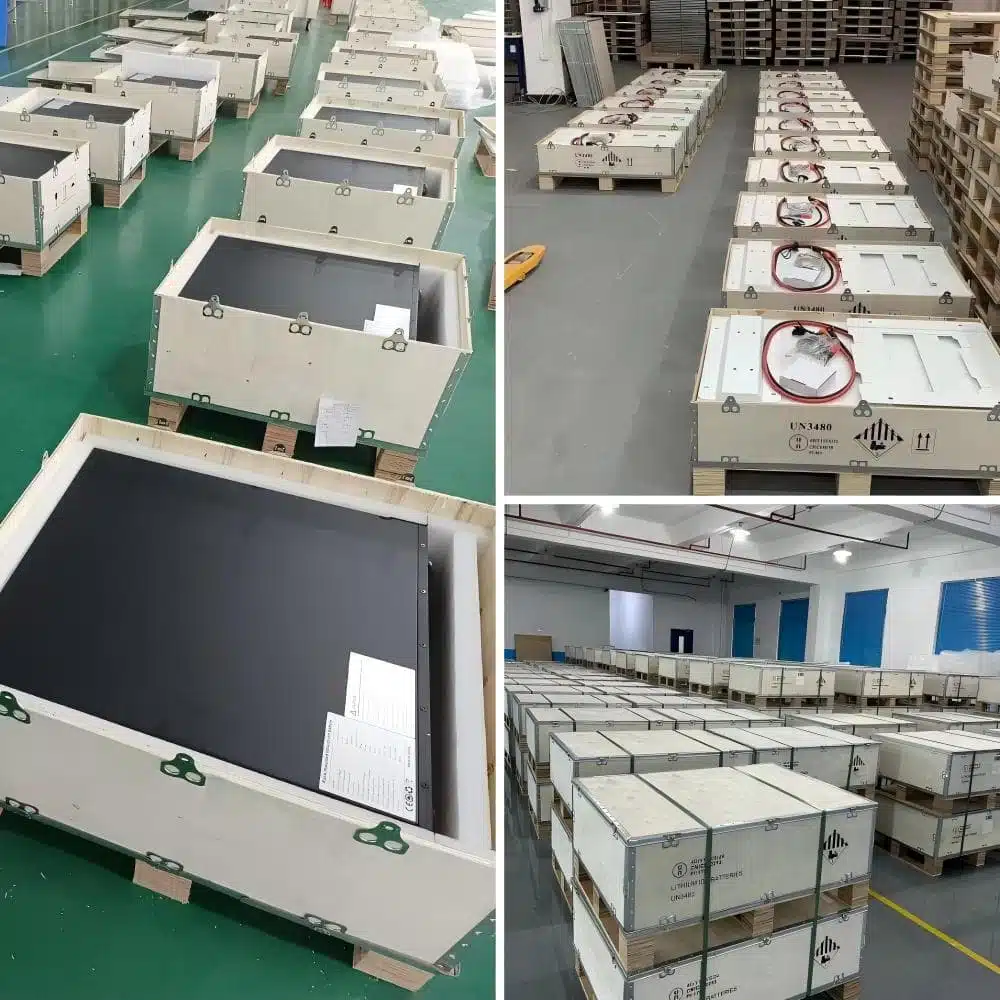

Secure & Compliant Packaging
To ensure safe transit for Class 9 Dangerous Goods, every battery is protected with high-quality Pearl Wool (EPE Foam) and encased in UN-certified cartons. For bulk shipments, we utilize sturdy Plywood or Plastic Pallets wrapped in shrink film, fully compliant with international shipping regulations.
Global Shipping Options (Incoterms)
We support flexible shipping terms to suit your business needs, including FOB, CIF, and DDP (Door-to-Door including tax).
- By Sea: The most economical choice for bulk orders.
- By Air / Express: Fast delivery for samples (DHL/UPS/FedEx).
- By Railway: Reliable CR Express service for European and Central Asian markets.
Production Lead Time
Our lead time varies based on product customization:
| Product Type | Samples | Bulk Order |
|---|---|---|
| Standard Models | 15 - 20 Days | 25 - 30 Days |
| Customized Models | 30 - 40 Days | 30 - 40 Days |
FAQ
Frequently Asked Questions
Q: Is the 15kWh (300Ah) battery too heavy for a wall?
A: The 15kWh unit is substantial due to its high capacity. However, it comes with a specially engineered heavy-duty reinforced steel wall bracket designed to distribute the weight evenly. It must be installed on a load-bearing wall (concrete or brick) or a stud-reinforced structure to ensure safety.
Q: Can I parallel this 300Ah battery with a 100Ah model?
A: No. We do not recommend mixing batteries of different capacities (e.g., 300Ah with 100Ah) or different brands in the same system. For optimal performance, safety, and lifespan, please connect only identical Balder Power 51.2V 300Ah modules in parallel.
Q: Does this battery support Bluetooth monitoring?
A: Yes, the Bluetooth monitoring function is optional. If selected, you can download our specific Mobile App to view real-time data such as voltage, current, temperature, and cycle count directly on your smartphone.
