12V 20Ah LiFePO4 Battery – Deep Cycle Replacement for Mobility Scooters & Golf Trolleys | M5 Terminals | Wholesale Factory Direct

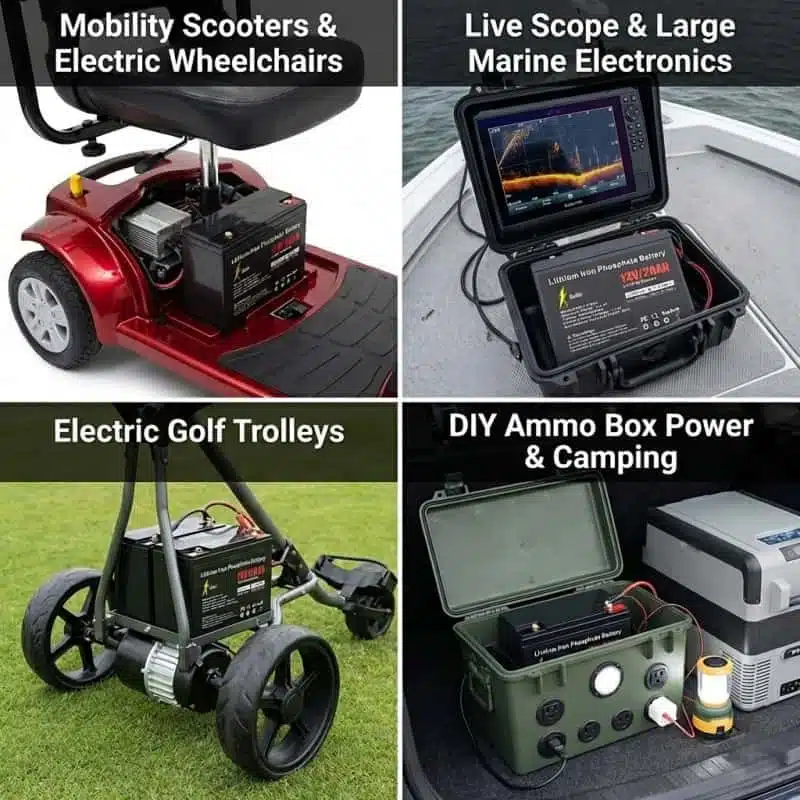

Upgrade your equipment with Balder Power’s 12V 20Ah LiFePO4 Battery. Designed as a drop-in replacement for standard 12V 18Ah-22Ah lead-acid batteries, it weighs only 2.8kg (vs. 6.5kg SLA) and delivers 256Wh of consistent power. Featuring robust M5 screw terminals for secure vibration-proof connections, 4000+ cycles, and a 5-Year Warranty. Ideal for mobility scooters, electric golf trolleys, and large fish finders. ⚡ Bulk Pricing Available for Dealers & OEMs.
Product Description
The Professional’s Choice: 12V 20Ah Lithium Battery Upgrade
For applications where weight and reliability matter most, the Balder Power 12V 20Ah LiFePO4 battery is the ultimate solution. While traditional Sealed Lead Acid (SLA) batteries are heavy and suffer from voltage sag, our lithium technology provides constant power output while cutting the weight by nearly 60%.
Designed for Mobility & Outdoors Unlike generic batteries, our 12V 20Ah model is engineered with M5 Bolt Terminals. This is a critical feature for high-vibration applications like electric wheelchairs and golf push carts, ensuring a secure, high-current connection that won’t wiggle loose like standard F2 tabs.
Why Switch to Balder Power 20Ah?
-
True Deep Cycle Performance: Use 100% of the 20Ah capacity without damaging the battery. Perfect for powering Garmin LiveScope systems for a full day of fishing or completing 36 holes on the golf course.
-
Built to Last (4000+ Cycles): Stop replacing batteries every season. Our automotive-grade LiFePO4 cells are rated for over 10 years of service life, backed by a 5-Year Manufacturer Warranty.
-
Factory Direct Advantage: As a dedicated manufacturer, we ensure strict quality control (aging tests, voltage matching) and offer wholesale pricing that gives you a competitive edge in the market.
Technical Parameters
| Technical Specifications | |
|---|---|
| Model Number | BPE-LF1220 (12V 20Ah) |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Energy Capacity | 256Wh (20Ah) |
| Dimensions (L*W*H) | 181 * 77 * 168 mm |
| Weight | Approx. 2.8kg |
| Terminal Type | M5 Screw Bolt (Internal Thread) |
| Max Continuous Discharge | 20A |
| Cycle Life | 4000+ Cycles @ 80% DOD |
| Warranty | 5 Years |
| Casing Material | ABS (Black) |
Features & Advantages
🔋 High Capacity (256Wh) Pack more power into the same space. With 256Wh of energy, this battery outperforms standard 18Ah lead-acid units, providing extended range for mobility scooters and longer runtime for 10-inch+ marine fish finders.
⚙️ Secure M5 Screw Terminals Safety meets reliability. The integrated M5 internal thread terminals are designed for ring terminal connections. This ensures optimal conductivity and prevents disconnection during movement on rough terrain.
⚖️ Ultra-Lightweight (2.8kg) Weighing just 2.8kg, this battery is significantly lighter than the 6.5kg lead-acid equivalent. For elderly users handling battery packs for travel scooters, this weight reduction is a game-changer.
🛡️ Comprehensive BMS Protection Our intelligent Battery Management System guards against over-charge, over-discharge, over-current (20A Max), and short circuits. It ensures the battery operates safely within its limits, even under the demanding loads of electric motors.
🔄 Series & Parallel Ready Flexible configuration. Connect up to 4 units in series to create 24V (for wheelchairs), 36V (for trolling motors), or 48V systems. (Please ensure voltage balancing before connection).
Manufacturing & QC Process
Precision Engineering: Our Energy Storage Battery Manufacturing Process
Quality is not just inspected; it is manufactured at every step. At Balder Power, we implement a rigorous LifePO4 production protocols that goes beyond industry standards. From automotive-grade cell sorting to 100% full-cycle aging tests, our transparent manufacturing process ensures every Energy Storage System (ESS) delivers maximum safety and longevity for your projects.
Custom Engineering & ODM Design
Our Wuhan engineering team translates your voltage and capacity requirements into precise CAD blueprints. We simulate structure and thermal management to ensure the battery pack fits your application perfectly before production begins.
Premium A-Grade Cell Sourcing
Quality starts at the core. We strictly select brand-new, A-grade LiFePO4 or NCM cells from Tier-1 manufacturers (like CATL, EVE, Ganfeng). We match cells specifically for your project's energy density and cycle life needs.
Precision Capacity & IR Sorting
To guarantee pack longevity, consistency is key. We utilize automated sorting machines to group cells with identical Internal Resistance (IR) and Voltage. This strictly eliminates the "barrel effect," ensuring the entire pack performs at peak efficiency.
Automated Matrix Spot Welding
Our robotic welding arms execute high-precision spot welding using pure copper strips. This process ensures low-impedance connections and structural rigidity, preventing vibration damage during transportation or mobile usage.
Smart BMS Integration & Wiring
The "Brain" of the battery is installed. We integrate advanced Battery Management Systems (BMS) with communication protocols (CAN/RS485). Technicians organize signal wires neatly to prevent short circuits and ensure accurate thermal monitoring.
Structural Assembly & Insulation
Before closing the case, we apply industrial-grade insulation and shock-absorbing materials. The semi-finished packs are inspected for layout integrity to meet IP protection ratings for dust and moisture resistance.
100% Aging Cycle Test & OQC
Zero tolerance for early failures. Every finished battery undergoes a rigorous aging test (Charge/Discharge cycles) to simulate real-world stress. Final OQC includes voltage checks, BMS communication tests, and visual inspection.
UN38.3 Compliant Safety Packaging
Safety extends to delivery. We use customized wooden crates and high-density foam that meet UN38.3 dangerous goods transport standards, ensuring your goods arrive safely via sea or air freight.
Packing & Delivery
Secure & Compliant Packaging
To ensure safe transit for Class 9 Dangerous Goods, every battery is protected with high-quality Pearl Wool (EPE Foam) and encased in UN-certified cartons. For bulk shipments, we utilize sturdy Plywood or Plastic Pallets wrapped in shrink film, fully compliant with international shipping regulations.
Global Shipping Options (Incoterms)
We support flexible shipping terms to suit your business needs, including FOB, CIF, and DDP (Door-to-Door including tax).
- By Sea: The most economical choice for bulk orders.
- By Air / Express: Fast delivery for samples (DHL/UPS/FedEx).
- By Railway: Reliable CR Express service for European and Central Asian markets.
Production Lead Time
Our lead time varies based on product customization:
| Product Type | Samples | Bulk Order |
|---|---|---|
| Standard Models | 15 - 20 Days | 25 - 30 Days |
| Customized Models | 30 - 40 Days | 30 - 40 Days |
FAQ
Q: What are the exact dimensions of this 20Ah battery? A: The dimensions are 181mm (L) x 77mm (W) x 168mm (H). This is a common group size for 12V 18Ah-22Ah lead-acid batteries found in mobility scooters and UPS systems.
Q: Does this battery come with screws for the terminals? A: Yes, the battery features M5 internal thread terminals and comes with the necessary M5 bolts and washers included. This ensures a secure connection for ring terminals, which is superior to slide-on tabs for high-vibration use.
Q: Can I use two of these in series for my 24V mobility scooter? A: Absolutely. You can connect two 12V 20Ah batteries in series to create a 24V 20Ah system. This is a very popular upgrade for Pride, Go-Go, and other travel mobility scooters. Please charge both batteries fully individually before connecting them.
Q: How much lighter is this compared to my old battery? A: This LiFePO4 battery weighs only 2.8kg. A standard lead-acid battery of the same physical size typically weighs around 6.5kg to 7kg. Switching to lithium saves over 50% of the weight, making the device easier to transport.
Q: Do you offer wholesale pricing for shops and distributors? A: Yes, Balder Power is a factory-direct supplier. We offer tiered wholesale pricing for B2B customers. Whether you need a pallet for distribution or custom OEM branding, please contact us for a quote.
Q: What is the warranty policy? A: We stand behind our quality with a 5-Year Manufacturer Warranty. Our batteries are built to last 4000+ cycles, ensuring years of reliable service.
